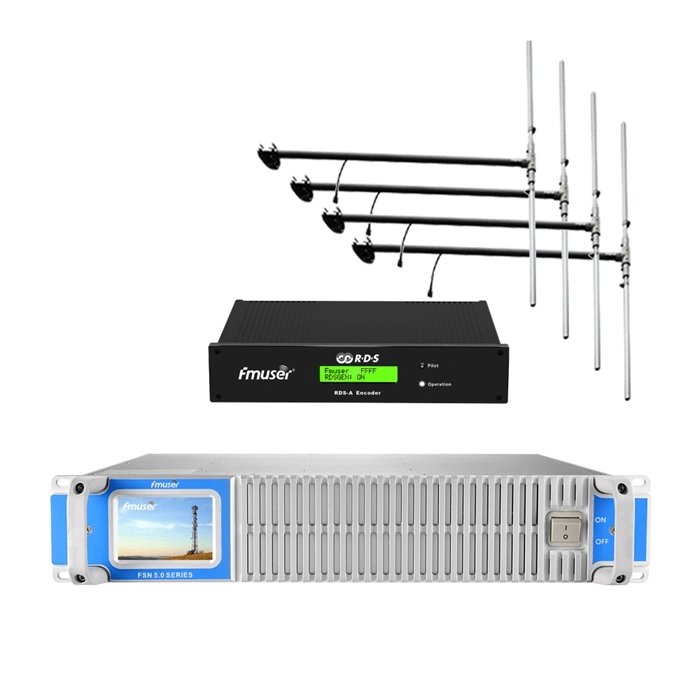

FMUSER FSN5-600W FM Radio Station Package with 4 Bay FM Antenna and RDS Encoder
- Price (USD): 3289
- Qty (PCS): 1
- Shipping (USD): 0
- Total (USD): 3289
- Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
- Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer

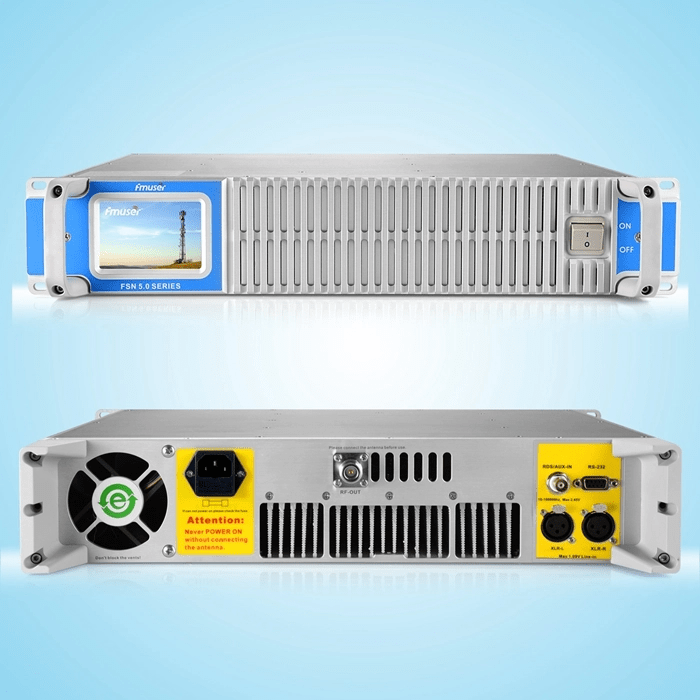

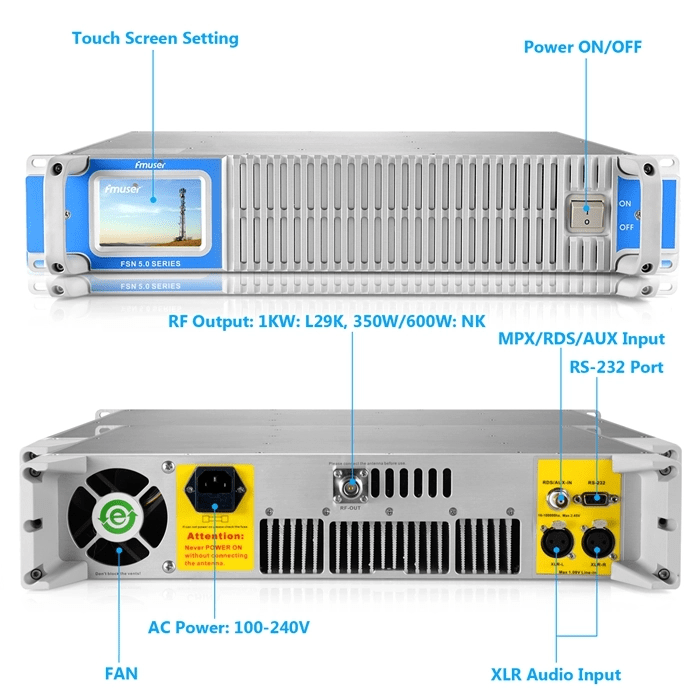

FMUSER FSN5-600W FM Transmitter
Exclusively from other 600W transmitters in the market, FMUSER FSN5-600w FM transmitter features its human-friendly touch screen operation interface, highly stable and reliable performance, and near CD-quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of radio stations.
This 600W FM transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size, and easy in operation and maintenance. It adopts the most advanced RF transistor of BLF188XR OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever.
The DSP(Digital Sound Processing) technology makes the FSN5-600w FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.
As a quality assurance, FMUSER Provides 1 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.

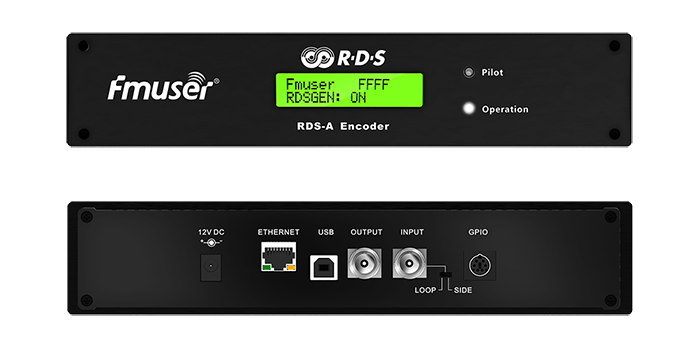

FMUSER RDS-A Encoder
FMUSER RDS-A Encoder is well suited for most regional, local, RSL, LPFM, and other media- and small-coverage radio stations which use Ethernet for dynamic RDS data distribution. Built-in Ethernet controller supports multiple TCP/UDP ports, internet functions, and remote monitoring.
FMUSER RDS-A Encoder has a Fully DSP concept and effective design ensures high reliability, excellent signal characteristics and gives the user many advanced features while maintaining low acquisition costs.
1) OVERHEAT PROTECTION:
The transmitter will switch to auto-protection with an alarm message and a beep sound once the working temperature gets higher than the normal range.
2) OVER SWR PROTECTION:
SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing an alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM:
When the fan stopped running, there will be an alarming message showing on the screen like the following:
4) FREQUENCY AUTO-MATCHING:
The 600W FM transmitter auto-scans the best matching frequency on the antenna to maximize the broadcasting efficiency at a minimum SWR ratio, this ensures the best performance from both the transmitter and antenna.
5) MODULATION ADJUSTABLE:
When audio mixers are connected with the 600W FM transmitter through the XLR Balanced audio input interface, the transmitter will provide plenty of options for the modulation to best match with the mixer.
6) ONE-TOUCH OPERATION:
This FSN5-600W FM transmitter is designed with a precisely sensitive touch screen in replacing the control buttons on previous transmitters. With all information displayed clearly on the screen, users can control and configure all parameters very easily.
7) FLEXIBLE AUDIO OPTIONS:
The pre-emphasis of 600W FM transmitters are flexible to choose among 0US / 50US/ 75US, users can choose the best match mode according to their own needs.
8) ADJUSTABLE POWER OUTPUT:
The RF out of this 600W FM transmitter is continuously adjustable from 0-600 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...150w...350w...600w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
9) LONG COVERING RADIUS
FMUSER FSN5 600W FM Transmitter
|Frequency step value||10KHz|
|Modulation||FM, peak deviation ± 75KHz|
|Frequency stability||<± 100Hz|
|Frequency stabilization method||PLL frequency synthesizer|
|RF output power||0~600 watts ± 0.5dB|
|Residual wave||<- 70dB|
|Higher harmonics||<- 65dB|
|Parasitic AM||<- 50dB|
|RF output impedance
|RF output connector
|Audio input connector||XLR female|
|AUX input connector||BNC female|
|Pre-emphasis||0us, 50us, 75us (user setting)|
|S / N ratio mono||> 70 dB (20 to 20KHz)|
|S / N ratio stereo||> 65 dB (20 to 15KHz)|
|Audio frequency response||30 ~ 15000Hz|
|Audio level gain
||-12dB ~ 12dB step 3dB
||-19dB ~ 5dB
|Power supply voltage range||110V ~ 260V|
|Operating temperature range||-10 to 45 ℃|
|Work mode||continuous work|
|Cooling method||air cooling|
|Dimensions||483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack.
FMUSER RDS- Encoder
* Fully dynamic FM broadcast RDS encoder with up to four independent communication ports
* USB connectivity for local settings and maintenance purposes
* Ethernet connectivity for linking with broadcast automation system
* Control interface based on ASCII commands and UECP protocol
* Supports internet functions and remote monitoring
* Text features include dynamic PS, parsing, scrolling, tagging, fixed messages, scheduling, and HTTP reading
* Excellent compatibility with broadcast automation systems
* Control software includes powerful Windows GUI application
* Supports control from external PHP/ASP scripts
* Easy and fast set-up
* Excellent spectral purity, direct digital RDS signal synthesis; compliant with EN 50067 / EN 62106
* Two switchable program sets (with optional DSN and PSN settings)
* External TA and Program set switch
* Bypass relay, high reliability
* Switchable MPX loopthrough mode (Loop/Side)
* Internal real-time clock incl. backup battery
* No special 19 kHz input needed - pilot tone internally recovered from MPX signal using digital PLL
