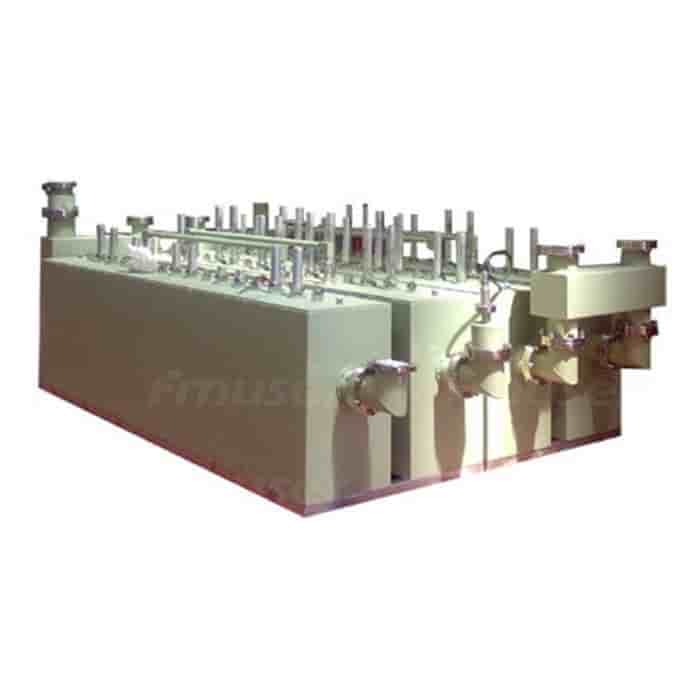

3200W UHF DTV Starpoint Combiner 3.2kW DTV Branched Combiner for TV Station

FEATURES

  • Price (USD): Please Contact Us
  • Qty (PCS): 1
  • Shipping (USD): Please Contact Us
  • Total (USD): Please Contact Us
  • Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
  • Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
  • Copper, silver-plated brass, and high-quality aluminum alloy
  • 6-cavity filters
  • Filters with 2 cross couplings
  • Low insertion loss and VSWR
  • High isolation
  • Compact design
  • Best Low-cost broadcast solution for the budget buyer
  • The tailored and multi-structure design for broadcast station
  • Compact design

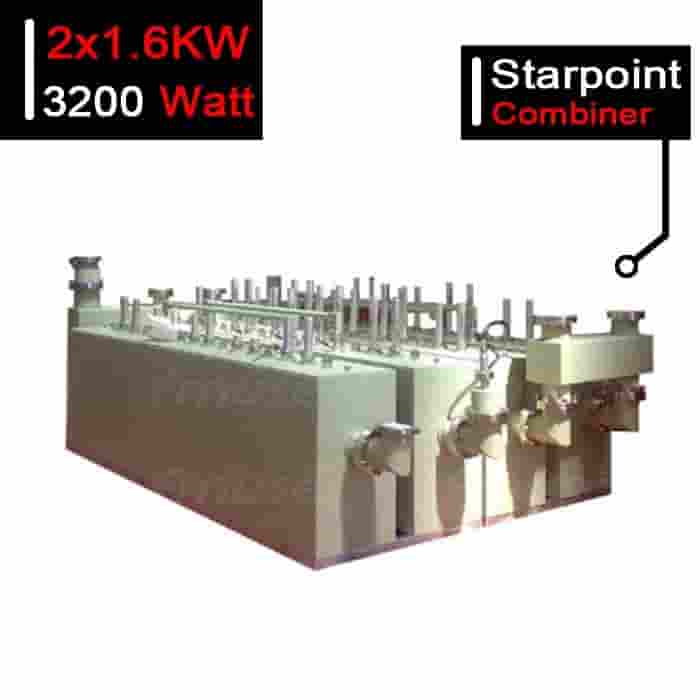

  • 3200W Starpoint UHF Digital TV Combiner x 1PCS



Please Contact Us for More Infomation

Model

A

B

C

D

Configuration

Starpoint

Frequency Range

470 - 862 MHz

Min. Frequency Spacing

1

Max. Input Power

2 x 350 W

2 x 750 W

2 x 1.6 kW

2 x 3 kW

VSWR

≤ 1.15

Insertion loss

f0

≤ 0.70 dB

≤ 0.60 dB

≤ 0.50 dB

≤ 0.40 dB

f0±4MHz

≤ 4 dB

f0±6MHz

≥ 20 dB

f0±12MHz

≥ 40 dB

Isolation between inputs

≥ 45 dB

Connectors

7-16 DIN

1 5/8"

1 5/8"

1 5/8", 3 1/8"

Number of cavities

6

Dimensions

600 × 200 × 300 mm

800 × 350 × 550 mm

815 × 400 × 750 mm

1200 × 500 × 1000 mm

Weight

~ 15 kg

~ 38 kg

~ 57 kg

~ 95 kg
