FMUSER 50W Complete FM Radio Station Package with 50W Transmitter Station and Full Radio Studio

Quick View

1. What is 50W Complete FM Radio Station Package?
2. What are the Applications of the 50W Complete FM Radio Station Package?
3. How to use the 50W Complete FM Radio Station Package?
4. Equipment List of 50w Complete FM Radio Station Package
5. Complete FM Radio Station Package Supplier from China

What is 50W Complete FM Radio Station Package?



• The Next Chapter: What are the Applications of the 50W Complete FM Radio Station Package? | SKIP



1. The FM Transmission Part



50W complete FM radio station package, as a semi-turnkey solution composed of several basic broadcasting devices, is just like most packages you can see on Google.



However, unlike the packages composed of radio studio equipment only, a 50W FM transmission part is added, which is mainly composed of the following equipment:





1. FU-50B 50W Broadcast Transmitter
2. DP100 FM dipole antenna (optional layers)
3. 20 meters SYV-50-5 solid PE antenna cable
4. RDS encoders (optional)



Package includes:



Items	Quantity (pcs)
FU-50B 50W FM Transmitter	1
DP100 FM Dipole Antenna	1
20M antenna cable and accessories	1



2. The Radio Studio Part



As for the radio studio equipment part, the list is as followed (for specification details please move to "50w Complete FM Radio Station Equipment List"):





1. USB802 Audio Mixer (8 Ways)
2. AKG44 Headphone
3. FU1600 Audio Processor
4. FU350 Microphone
5. Mic Stand
6. Mic Pop Filter



Package includes:



Items	Quantity (pcs)
8-way Audio Mixer	1
Monitor Headphone	2
Monitor Speaker	2
Audio Processor	1
Microphone	2
Microphone Stand	2
BOP cover	2



In order to lower the full cost, a few of the unnecessary expensive pieces of equipment have been excluded, including broadcast furniture, lighting facilities, etc., which makes this solution suitable for most low-budget buyers.



See Also: Complete Broadcast Radio Station Equipment List (with pics)



• The Next Chapter: What are the Applications of the 50W Complete FM Radio Station Package? | SKIP
• Back to Content | SKIP



What are the Applications of the 50W Complete FM Radio Station Package? Answers from FMUSER



• The Next Chapter: How to use the 50W Complete FM Radio Station Package?  | SKIP
• The Last Chapter: What is 50W Complete FM Radio Station Package? | SKIP
• Back to Content | SKIP



Due to the addition of transmission equipment and studio equipment, this solution can be well-fit for long-distance broadcasting of almost any small and medium-sized FM radio station.





 Typical broadcast applications are as follows:



• Community Radio Station
• Campus Radio Station
• Town Radio Station
• FM Radio Station of Any Kinds
• Supermarket Broadcasting
• Outdoor Advertisement Broadcasting
• Sports Events Broadcasting / Horse Races Broadcasting
• Conference Broadcasting
• Factory Broadcasting / Announcement
• Drive-in Church Events Broadcasting
• Concert Light Show Broadcasting
• Drive-in Theater Broadcasting / Car Theater Broadcasting
• etc.



To meet every need of the low-budget buyer, the best product combination has been configured by FMUSER.



You don't have to search item by item for broadcasting equipment mentioned above, for example, transmitter antennas and cables&accessories, audio processors and mixers, et., this will save you a great fortune and time.



All you need to do is properly install the antenna and radio studio equipment pieces, prepare your radio program, and deliver it to the listeners on time.



So how can I install this equipment package properly? Anything that I should know pay attention to?



Keep reading for more!



• The Last Chapter: What is 50W Complete FM Radio Station Package? | SKIP
• Back to Content | SKIP



How to use the 50W Complete FM Radio Station Package?



• The Next Chapter: Equipment List of 50w Complete FM Radio Station Package | SKIP
• The Last Chapter: What are the Applications of the 50W Complete FM Radio Station Package? | SKIP
• Back to Content | SKIP



The importance of learning how and why to install the transmitter and antenna correctly goes above all, it is mainly because if they are not set in the right way, your transmitter may be burnt out for reasons.



Step #1: Install Your Transmitter and Antenna In a Right Way



For the FM transmission system installation, the following 3 points should be paid special attention to:



1. Higher installation means better antenna radiation. Basically, a higher setting place for the antenna means more coverage, so set up your antenna as higher as possible (BTW, don't forget the transmitter TPO!).
2. Proper wire connection between the transmitter and the antenna matters. Always remember the well-connection between an antenna and an FM broadcast transmitter before powering on. I'm pretty sure that you don't want to let your transmitter burn out due to the over-high VSWR of the antenna.
3. Check whether the Anode sides are up or down. When setting the DP100 FM dipole antenna, the "+Anode" end should be face up, and “-Anode” should be face down, once they are set upside down, the VSWR may go as higher as it can, then "BOOM!", your transmitter was burnt out.



Still wondering or don't know where to begin with? Why not just reach out to us for help? Contact our sales team directly and ask for online installation guidance, we are always listening!



Ask Now for Help

Step #2: Check our YouTube and Learn How to Do the Job



During the idle time waiting for a reply, you can watch the following videos on broadcast equipment installation (created by Ray Chan) to proceed!



Video 1: FMUSER 350W FM Radio Studio Installation



In this video, you will learn how to set up a 350W FM radio station, I'll be highlighting what you need to start with and explaining as carefully as I could for every single step in this video to make sure you guys understand fully: https://youtu.be/cO_7pV_jvms



350W Radio Station Package Alternative:

https://www.fmradiobroadcast.com/product/detail/150w-complete-fm-radio-station-for-sale-fmuser-broadcast.html



Video 2: DP100 FM Dipole Antenna Installation



In this video, you will learn how to set up an FMUSER DP100 FM dipole antenna in a few minutes. FMUSER DP100 is a practical dipole FM antenna designed for FM radio stations, you wouldn't miss any steps if you were a radio station equipment starter! Anyway, make sure to contact us when you need them: https://youtu.be/5TJb15ou3iI



Follow us on YouTube!



By the way, welcome to follow FMUSER's YouTube and make sure not to miss interesting video updates timely! Pay a visit NOW: https://www.youtube.com/channel/UCer199-Yi70_QS2uj8P8WjQ



• The Last Chapter: What are the Applications of the 50W Complete FM Radio Station Package? | SKIP
• Back to Content | SKIP



Recommended Products You May Also be Interested In

Up to 1000 Watts Low Power FM transmitters	Up to 10000 Watts High power FM transmitters	Transmitters, antennas, cables FM transmitter packages
Radio studio, transmitter station Radio Station Equipment	STL TX, RX, and antenna STL links	1 to 8 bays FM antenna packages FM Antenna System



Equipment List of 50w Complete FM Radio Station Package



• The Next Chapter: Complete FM Radio Station Package Supplier from China | SKIP
• The Last Chapter: How to use the 50W Complete FM Radio Station Package?  | SKIP
• Back to Content | SKIP



In the following reading, you'll learn a full list of 50w complete FM radio station package, including what they are and how they work, features, and important specifications are also included.



Direct visit:



1. Broadcast Transmitter
2. FM dipole antenna
3. Cable and Accessories
4. Audio Monitor
5. Audio Mixer
6. Headphone
7. Audio Processor
8. Microphone
9. Mic Stand
10. Mic Pop Filter



1. FU-50B 50 Watt FM Radio Transmitter



FU-50B 50 watt FM radio transmitter, the leader transmitter of the FMUSER drive-in series, has all its components assembled in a 19-inch 1U aluminum alloy-made unit that can perfectly protect components in many extreme conditions.





The unique manufacturing process gives the FU-50B a stronger performance. This 50W FM transmitter, known for its stereo and high-fidelity sound quality, can be tuned in the 87-108 MHz frequency band, and the 0-50W adjustable power can cover several kilometers of broadcast range, which shares the broadcast range as the transmitter that has lower power such as 5W, 15W, 25W, 30W FM transmitter, etc., and the PLL design gives the FU-50B frequency stability.



The typical features of the unit are as followed:



• Wear Resistance
• Incredible Hardness
• Heat Conduction
• High Corrosion Resistance



Due to its small size and flat shape (similar to the shape of a pizza box), the FU-50B is also known as a rack-type FM transmitter. In fact, the FU-50B can be easily installed in a rack (as tall as one person) by most small and medium-sized radio stations.



Similar Products:

https://www.fmradiobroadcast.com/product/fm-transmitters-0-50w



• The Next Section: DP100 FM Dipole Antenna System | SKIP
• Back to Content | SKIP



Terms	Specs
Operating frequency	87-108MHz
Output power	50W MAX continuously adjustable
Output Impedance	50 ohm
Spurious and harmonic radiation	-60 dB
RF Output Connector	N Female (L16)





The DP100 dipole FM antenna system consists of a 1-bay DP100 dipole antenna with 20-meter antenna cables and accessories, also known as one of FMUSER's best-selling FM antenna system solutions.





Similar Products:

https://www.fmradiobroadcast.com/product/complete-fm-antenna-system-packages-fmuser-broadcast



The DP100 FM dipole has been redesigned and manufactured out of its first version released years ago and has delivered more perfect solutions for several global small and medium radio stations, features are as followed:



1. Higher antenna gain
2. High-hardness, corrosion-resistant aluminum alloy material
3. Rod diameter of Φ30~Φ40 mm
4. Connections are more stable
5. Matte texture
6. 1 MHz step system (88-108 Mhz frequency optional)
7. Easy-setting and disassembling



• The Next Section: SYV-50-5 20 Meters Antenna Cable and Accessories | SKIP
• The Last Section: FU-50B 50 Watt FM Radio Transmitter | SKIP
• Back to Content | SKIP



Terms	Specs
Freq range	88-108 MHz tuneable (1MHz step)
Input Impedance	50 ohm
VSWR	<1.5
Gain	3.5 dBi
Polarization	Vertical
Max. power input	150W
Beamwidth	360° at 3dB (Horizontal) 73° at 3dB (Vertical)





Antenna feeders and accessories are conventional broadcast equipment accessories. In this package, a 20M antenna feeder SYV-50-5 and mounting clamps (gaskets, U-clamps, support plates, and nuts) are included, and they will be sent to you along with the antenna. In addition to high-quality 50WFM transmission equipment, this package also includes several professional radio studio recording equipment, including:





• The Next Section: FU200MKIII Studio Audio Monitor | SKIP
• The Last Section: DP100 FM Dipole Antenna System | SKIP
• Back to Content | SKIP



Terms	Material	Diameter
Conductor	CCS	0.9
	BC	0.9
Insulation	Solid PE	4.8
	Solid PE	4.8
Shield	BC Braid	96P/0.12
	BC Braid	96P/0.12
Jacket	PVC	7.2
	PVC	7.2
Impedance	N/A	50



Ask for Quotation



4. FU200MKIII Studio Audio Monitor





• The Next Section: FMUSER USB802 8-Way Audio Mixer | SKIP
• The Last Section: SYV-50-5 20 Meters Antenna Cable and Accessories | SKIP
• Back to Content | SKIP





FMUSER USB802 is an audio mixer with a high dynamic margin and high-definition audio. The ultra-low noise design makes this mixer the first choice in the 50W complete FM radio station package.





• The Next Section: FMUSER AKG44 Headphone | SKIP
• The Last Section: FU200MKIII Studio Audio Monitor | SKIP
• Back to Content | SKIP



Terms	Specs
Design	8-Input 2-Bus
Mic Preamp	2 with 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Mic Preamp dynamic range	130 dB
Mic Preamp sampling rate inputs	24-bit, 192 kHz
EQ	3-band on all channels
high-headroom line inputs	balanced*6





The advantage of FMUSER AKG44 is that it is comfortable to wear and cost-effective. It can be stretched and retracted to match the wearer's head shape. The leather earmuffs can still provide a comfortable wearing feeling for the wearer even if they are worn for a long time.





• The Next Section: FMUSER FU1600 Audio Processor | SKIP
• The Last Section: FMUSER USB802 8-Way Audio Mixer | SKIP
• Back to Content | SKIP



Terms	Specs
Frequency response	18-20,000 Hz
Impedance	32 ohms
Input Power	200 mW
Harmonic Distortion	<1%, Max.
SPL	115 dB SPL / V



Ask for Quotation

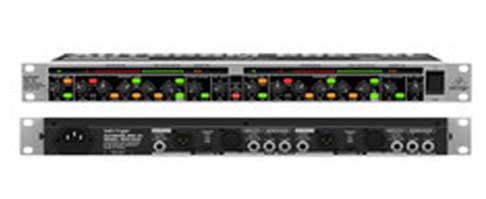

The FMUSER FU-1600 is an important part of FMUSER's low-cost studio solution. The adjustable dynamic enhancer with a level meter can provide bright and vivid audio even in the case of heavy compression.



The IGC (Interactive gain control) peak limiting circuit combines a clipper and a program limiter to provide reliable and inaudible peak signal protection. It can switch the de hissing device to eliminate excessive hissing of your vocal track.





• The Next Section: FMUSER FU350 Microphone | SKIP
• The Last Section: FMUSER AKG44 Headphone | SKIP
• Back to Content | SKIP



Terms	Specs
IKA (Interactive Knee Adaptation) program	Yes
Integrated Dynamic Enhancer	Yes
De-esser	Yes
Low Profile Filter	Yes
Adjustable Dynamic Enhancer	Yes
IGC (Interactive Gain Control) Peak Limiter Circuit	Yes
IRC (Interactive Ratio Control) Expander/Gate Circuit	Yes
Attack and Release Time	Manual/Auto





The FU350 is a high-definition noise-free wired microphone that is ideal for recording studios and home theaters and is the first choice for a combination of low cost and high performance.



The FU350 is made of high-quality ABS material with a Hi-fi function. When the sound vibration is transmitted to the microphone diaphragm, the magnetic field becomes a variable current, and the sound will be improved.



In addition, this microphone also has a high-end audio interface cannon pin, which is one of the audio plugs, but it is a high-end audio interface that supports condenser microphones and other high-quality microphones.





• The Next Section: FMUSER Mic Stand | SKIP
• The Last Section: FMUSER FU1600 Audio Processor | SKIP
• Back to Content | SKIP



Terms	Specs
Tuner Type	Dynamic
Wireless	Wired
Channel	1
Pointing characteristics	Cardioid
Dimensions	13*3.6*15cm
Cable length	184cm
Color	White
Power	0.5mA
Voltage	1-10V
Frequency	20-6,000Hz



Ask for Quotation





Fully prepared for the show? Still need such a good mic stand! 360-degree adjustable, easy to use according to different needs. The collapsible arm stand is easy to carry and install on almost any table. Whether it is live broadcasting or recording songs, etc., you can free your hands to do other things.



• 360-degree rotatable: The arm can be adjusted to any angle and height, allowing you to use it comfortably and conveniently during live broadcasts.
• Sturdy and non-slip: Strong and durable springs with anti-skid pads can hold the table top steadily without damaging it.
• EASY TO INSTALL: With the flexible fixing knobs and clips, the stand can be easily secured to the desktop. Then you can mount the microphone on the stand.
• Foldable Design: The foldable stand is foldable for easy carrying or storage.
• Wide range of applications: This microphone stand works with most microphones on the market. Suitable for any store, recording studio, Youtube/Facebook video recording, broadcast, desk, table, TV station, stage, home performance, etc.





• The Next Section: FMUSER Mic Pop Filter | SKIP
• The Last Section: FMUSER FU350 Microphone | SKIP
• Back to Content | SKIP



Terms	Specs
Installation	horizontal/vertical
External springs	4 units
Knob	cantilever fastening
Tubes	2 for the upper, 3 for the lower
Chassis mounted accessories	standard







• The Last Section: FMUSER Mic Stand | SKIP



The main features are as followed:



1. Dual Screen Wind Filter: The first wind filter blocks air like a normal wind filter; the gap in the middle disperses the remaining air pressure, so when it passes through the second screen, the explosion is easily contained. Effectively reduce plosives, wind interference, and saliva ejection during recording or broadcasting for a clear and loud sound.
2. Adjustable Gooseneck: The Pop Filter features a flexible 360° gooseneck clip stabilizer arm that supports its own weight and is strong enough to support the mic stand, and the internal rubber ring matches your mic perfectly.
3. MULTI-SCENE APPLICATIONS: Studio Microphone Microphone Windshield Bulletproof cover is a must-have for recording, speaking, or singing; it can be used for singing, voiceovers, podcasts, vlogging, and anywhere else you need quality sound.
4. What it does: Eliminate the dreaded hiss and sizzle when pronouncing the letter "S" and block those ugly "pops" after "B" and "P". Rotary installation for easy installation.



• The Last Chapter: How to use the 50W Complete FM Radio Station Package?  | SKIP
• Back to Content | SKIP



FMUSER Broadcast: Complete FM Radio Station Package Supplier from China



FMUSER is the leading broadcast equipment supplier in China, we provide almost all solutions from complete FM radio station equipment packages to AM and TV broadcast equipment, which have been successfully deployed in thousands of radio stations around the world.



Wholesale orders are also welcomed for broadcast transmitters and antenna systems of various powers. Quality is absolutely guaranteed, the wholesale price is reasonable, and a price discount is preferred for large quantities.



Contact us today and let us help you build your radio station!
