FMUSER 2U 300W FM Transmitter FSN-350T ( Max. Adjustable Output 350 Watts) for FM Radio Station


  • Price (USD): 1,499
  • Qty (PCS): 1
  • Shipping (USD): 0
  • Total (USD): 1,499
  • Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
  • Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
RF Part
Frequency 87.5 ~ 108 MHz
Frequency step value 10 kHz
Modulation FM
Peak deviation  ± 75 kHz
Frequency stability <± 100Hz
Frequency stabilization method PLL frequency synthesizer
RF output power 0 ~ 350 watts ± 0.5 dB
Residual wave < -70 dB
Higher harmonics < - 65 dB
Parasitic AM < - 50 dB
RF output impedance 50 Ω
RF output connector N female


Audio Part
Audio input connector XLR female
AUX input connector BNC female
Pre-emphasis 0 uS, 50 uS, 75 uS ( user setting)
S/N ratio mono >70 dB (20 to 20 kHz)
S/N ratio stereo >65 dB (20 to 15 kHz)
Stereo resolution -50 dB
Audio frequency response 30 ~ 15,000 Hz
Audio distortion <0.3%
Audio level gain -12 dB ~ 12 dB step 3 dB
Audio input -19 dB ~ 5 dB


General Part
Default password 000008
Power supply voltage range 110V ~ 260V
Operating temperature range -10 ~ 45 ℃
Work mode  Continuous work
Cooling method  Air cooling
Cooling efficiency <95%
Work Altitude <4500 M
Power consumption 1500 VA
Dimensions (W) 483 x (H) 320 x (D) 88 mm without handles and protrusions
Size 19 "2U standard rack.
Weight 12 kg


FSN-350T: The Best DSP 2U Rack 300W FM transmitter


As one of the leading low-power FM transmitters, the FSN-350T 300W FM transmitter is incorporated with high performance as well as impressive design.

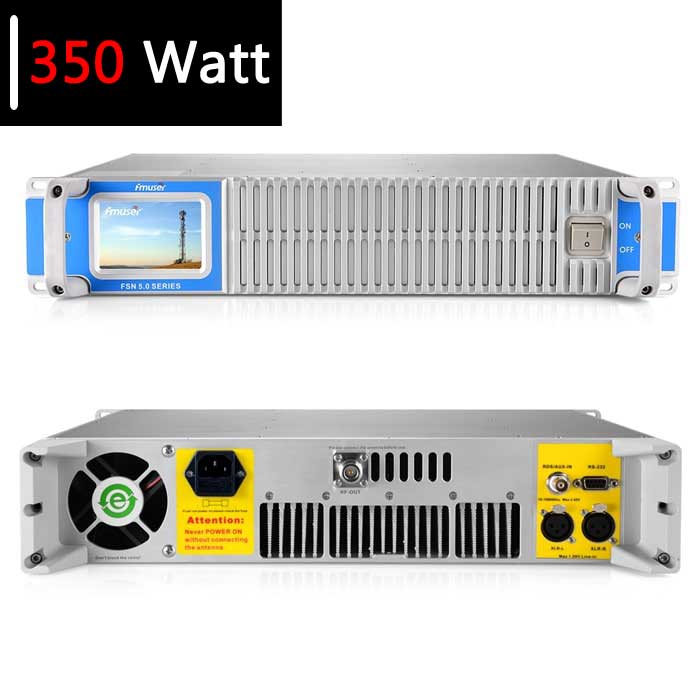

The display of the back and front panel of FMUSER FSN-350T rack 350W FM transmitter

 Thanks to our factory, we're able to serve our consumers with this high-end transmitter, it is featured by:


  • Human-friendly touching display for all-in-one management.
  • The durable cooling method from the internal fan helps successfully decrease the over-heated functioning temperature.
  • High-fidelity audio output has actually gotten popularity among clients all over the globe.
  • Built-in DSP modern technology has actually outshined most rivals active.
  • The 19-inch 2U portable layout has conserved much space and also improved the practicability for functioning.
  • Cost-effective as well as affordable layout as constantly.
  • BLF188XR/ MRFE6VP61K25H is embraced as the chip to reach a greater efficiency for the radio broadcast terminals.
  • Power tuneable (0 watts to 350 watts).


FSN-350T 300W FM transmitter is able to serve most radio broadcast terminals such as the area radio terminals in town as well as the village.

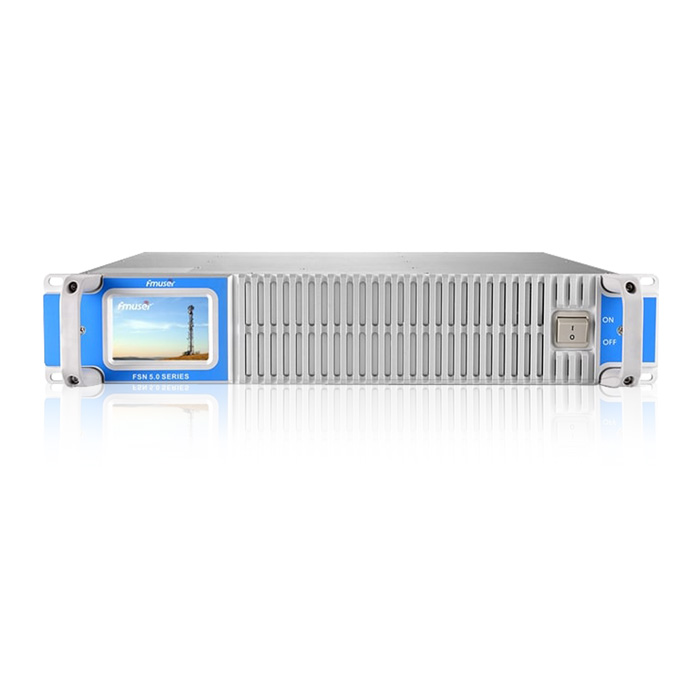

The front panel of FMUSER FSN-350T rack 350W FM transmitter


What is a good top-quality 300W FM transmitter? Take a look at the adhering to features that FSN-350T is designed with!


Complete Inner Security System


To start with, to save money on the expense of an FM radio station, not changing that high-cost equipment will certainly be the first option, and the design goes above all the various other recommendations.


The output and input ports on the panels of FMUSER FSN-350T rack 350W FM transmitter


The most valuable components are the over-heated &amp; over-SWR defense, and follower error security system, these styles are security guarantees for a long life span in an FM radio station.


The FSN-350T 300W FM transmitter can automatically switch to deliver worrying messages (generally warning for a while).

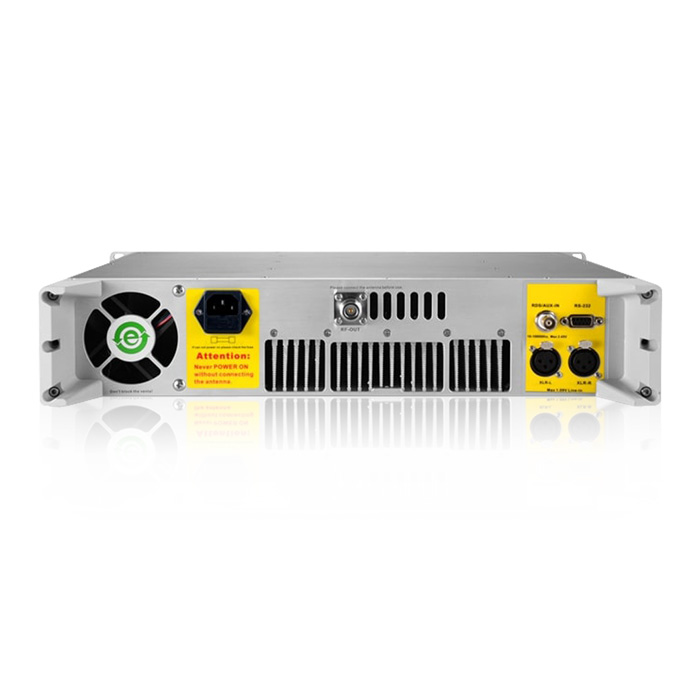

The silver back panel of FMUSER FSN-350T rack 350W FM transmitter


When the SWR is getting typically higher while there are disconcerting messages presented as well on the display, the gadget will keep warning.


Various applications of FMUSER FSN-350T rack 350W FM transmitter


And if the fan remains in negative working condition, alarming messages will additionally be revealed on the display.


Dependable Hardware Design Offers Wider Options


Have I informed you that the FSN-350T has 0 watts to 350Ws that are tuneable? Well, this is way much insufficient for a high-grade FM transmitter.


  1. Antenna Freq Matching: the FSN-350T 300W FM transmitter can scan automatically for the best antenna freq to enhance better performance between the transmitter and the antenna.
  2. One-touch, all done: a delicate touch board is set on the FSN-350T to happen of the jog dial, which represents a lot easier operation.
  3. Wonderful Adaptability via adjustable modes: the 300W FM transmitter is developed with XLR ports, which can be attached to the audio mixer.
  4. Optional Pre-emphasis Settings: there are 3 readily available audio settings for FSN-350T, particularly 0 United States, 50 United States, and 75 United States, any person who is in charge of the equipment procedure has the ability to pick the most effective one of their will.
